OEM PRoducts

Products Customized Specifically for Your Needs

OEM manufacturers need specific lighting for their enclosures to ensure optimal visibility and functionality inside equipment, control panels, or machinery housings. Standard lighting often doesn’t meet the unique size, shape, or environmental requirements of specialized enclosures, making tailored solutions essential. Customized lighting is important because it improves operator efficiency, enhances safety, and extends equipment reliability by delivering precise illumination exactly where it’s needed.

Need Something Different?

Classified

Harsh

Industrial

OEM

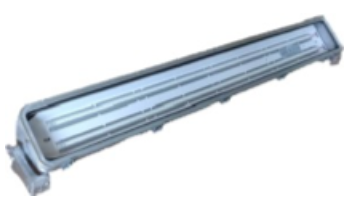

Vapor Tight - extruded aluminium - compact design

LVTSHB4-20W-UNV (Power and CCT Adjustable)

- 12"(L) x 3.5"(W)
- 120-277VAC standard, -40°F to +150°F ambient operating temp
- 20-watts, 2,200 lumens, 80+ CRI, 120-degree light spread
- Emergency backup battery and Dimming optional
Spec Sheet

LVTSHB4-30W-UNV (Power and CCT Adjustable)

- 12"(L) x 3.5"(W)
- 120-277VAC standard, -40°F to +150°F ambient operating temp
- 30-watts, 3,300 lumens, 80+ CRI, 120-degree light spread
- Emergency backup battery and Dimming optional
Spec Sheet

LVTSHB4-40W-UNV (Power and CCT Adjustable)

- 24"(L) x 3.5"(W)
- 120-277VAC standard, -40°F to +150°F ambient operating temp
- 40-watts, 4,400 lumens, 80+ CRI, 120-degree light spread
- Emergency backup battery and Dimming optional
Spec Sheet

LVTSHB4-60W-UNV (Power and CCT Adjustable)

- 48"(L) x 3.5"(W)
- 120-277VAC standard, -40°F to +150°F ambient operating temp
- 60-watts, 6,600 lumens, 80+ CRI, 120-degree light spread
- Emergency backup battery and Dimming optional
Spec Sheet

LVTSHB4-80W-UNV (Power and CCT Adjustable)

- 60"(L) x 3.5"(W)
- 120-277VAC standard, -40°F to +150°F ambient operating temp
- 80-watts, 8,800 lumens, 80+ CRI, 120-degree light spread
- Emergency backup battery and Dimming optional
Spec Sheet

LVTSHB4-90W-UNV (Power and CCT Adjustable)

- 60"(L) x 3.5"(W)
- 120-277VAC standard, -40°F to +150°F ambient operating temp
- 90-watts, 9,900 lumens, 80+ CRI, 120-degree light spread
- Emergency backup battery and Dimming optional
Spec Sheet

LVTSHB4-120W-UNV (Power and CCT Adjustable)

- 94"(L) x 3.5"(W)
- 120-277VAC standard, -40°F to +150°F ambient operating temp
- 120-watts, 13,200 lumens, 80+ CRI, 120-degree light spread
- Emergency backup battery and Dimming optional
Spec Sheet

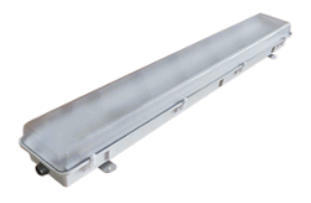

Vapor Tight - PolyCarbonate

LVTXPC-30W-UNV

- 48"(L) x 4.3"(W)
- 120-277VAC standard, -40°F to +120°F ambient operating temp
- 30-watts, 4,500 lumens, 80+ CRI, 120-degree light spread
- Emergency backup battery and Dimming optional
Spec Sheet

LVTXPC-40W-UNV

- 48"(L) x 4.3"(W)
- 120-277VAC standard, -40°F to +120°F ambient operating temp
- 40-watts, 5,400 lumens, 80+ CRI, 4000K or 5000K, DLC, multiple light spread options
- Emergency backup battery and Dimming optional
Spec Sheet

LVTXPC-50W-UNV

- 48"(L) x 4.3"(W)
- 120-277VAC standard, -40°F to +120°F ambient operating temp
- 50-watts, 6,500 lumens, 80+ CRI, 4000K or 5000K, DLC, multiple light spread options
- Emergency backup battery and Dimming optional
Spec Sheet

LVTXPC-60W-UNV

- 84"(L) x 4.3"(W)
- 120-277VAC standard, -40°F to +120°F ambient operating temp
- 60-watts, 8,400 lumens, 80+ CRI, 4000K or 5000K, DLC, multiple light spread options
- Emergency backup battery and Dimming optional
Spec Sheet

LVTXPC-70W-UNV

- 84"(L) x 4.3"(W)
- 120-277VAC standard, -40°F to +120°F ambient operating temp
- 70-watts, 9,540 lumens, 80+ CRI, 4000K or 5000K, DLC, multiple light spread options
- Emergency backup battery and Dimming optional
Spec Sheet

LVTXPC-80W-UNV

- 84"(L) x 4.3"(W)
- 120-277VAC standard, -40°F to +120°F ambient operating temp
- 80-watts, 10,400 lumens, 80+ CRI, 4000K or 5000K, DLC, multiple light spread options
- Emergency backup battery and Dimming optional
Spec Sheet

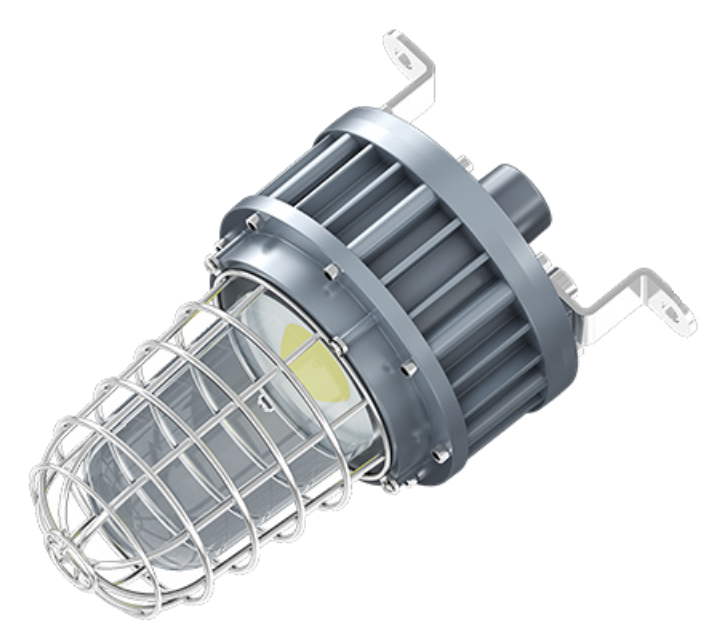

c1d1: Jar

EPJL-20W-UNV

- Class 1, Div. 1: Groups C, D
- Outdoor Marine Type (saltwater)
- Paint Spray Booth Approved
- Tunable Driver for a Variable Lumen Output Range of 1,500lm to 11,000lm
Spec Sheet

EPJL-20W-UNV

- Class 1, Div. 1: Groups C, D
- Outdoor Marine Type (saltwater)
- Paint Spray Booth Approved
- Tunable Driver for a Variable Lumen Output Range of 1,500lm to 11,000lm
Spec Sheet

EPJL-30W-UNV

- Class 1, Div. 1: Groups C, D
- Outdoor Marine Type (saltwater)
- Paint Spray Booth Approved
- Tunable Driver for a Variable Lumen Output Range of 1,500lm to 11,000lm
Spec Sheet

EPJL-40W-UNV

- Class 1, Div. 1: Groups C, D
- Outdoor Marine Type (saltwater)
- Paint Spray Booth Approved
- Tunable Driver for a Variable Lumen Output Range of 1,500lm to 11,000lm
Spec Sheet

c1d1: Exit Signs

EPJEX-3W-UNV

- Class 1, Div. 1: Groups C, D
- Outdoor Marine Type (saltwater)
- Paint Spray Booth Approved
- Tunable Driver for a Variable Lumen Output Range of 1,500lm to 11,000lm
Spec Sheet

EPJEXCOMBO-5W-UNV

- Class 1, Div. 1: Groups C, D
- Outdoor Marine Type (saltwater)
- Paint Spray Booth Approved
- Tunable Driver for a Variable Lumen Output Range of 1,500lm to 11,000lm
Spec Sheet

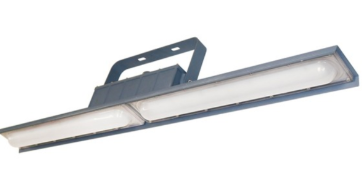

c1d1: Linear

Low Bay: HLHLB-20W-UNV

- Class 1, Div. 1: Groups C, D
- Outdoor Marine Type (saltwater)
- Paint Spray Booth Approved
- Tunable Driver for a Variable Lumen Output Range of 1,500lm to 11,000lm
Spec Sheet

Low Bay: HLHLB-40W-UNV

- Class 1, Div. 1: Groups C, D
- Outdoor Marine Type (saltwater)
- Paint Spray Booth Approved
- Tunable Driver for a Variable Lumen Output Range of 1,500lm to 11,000lm
Spec Sheet

Low Bay: HLHLB-60W-UNV

- Class 1, Div. 1: Groups C, D
- Outdoor Marine Type (saltwater)
- Paint Spray Booth Approved
- Tunable Driver for a Variable Lumen Output Range of 1,500lm to 11,000lm
Spec Sheet

Low Bay: HLHLB-80W-UNV

- Class 1, Div. 1: Groups C, D
- Outdoor Marine Type (saltwater)
- Paint Spray Booth Approved
- Tunable Driver for a Variable Lumen Output Range of 1,500lm to 11,000lm
Spec Sheet

Full Metallic: HL3-2-2-LED-40W-UNV

- Class 1, Div. 1: Groups C, D
- Outdoor Marine Type (saltwater)
- Paint Spray Booth Approved
- Tunable Driver for a Variable Lumen Output Range of 1,500lm to 11,000lm
Spec Sheet

Full Metallic: HL3-4-2-LED-80W-UNV

- Class 1, Div. 1: Groups C, D
- Outdoor Marine Type (saltwater)
- Paint Spray Booth Approved
- Tunable Driver for a Variable Lumen Output Range of 1,500lm to 11,000lm
Spec Sheet

Full Metallic: HL3-4-3-LED-120W-UNV

- Class 1, Div. 1: Groups C, D
- Outdoor Marine Type (saltwater)
- Paint Spray Booth Approved
- Tunable Driver for a Variable Lumen Output Range of 1,500lm to 11,000lm
Spec Sheet

Full Non-Metallic: HL1-2-2-LED-40W-UNV

- Class 1, Div. 1: Groups C, D
- Outdoor Marine Type (saltwater)
- Paint Spray Booth Approved
- Tunable Driver for a Variable Lumen Output Range of 1,500lm to 11,000lm
Spec Sheet

Full Non-Metallic: HL1-4-2-LED-80W-UNV

- Class 1, Div. 1: Groups C, D
- Outdoor Marine Type (saltwater)
- Paint Spray Booth Approved
- Tunable Driver for a Variable Lumen Output Range of 1,500lm to 11,000lm
Spec Sheet

Full Non-Metallic: HL1-4-3-LED-120W-UNV

- Class 1, Div. 1: Groups C, D
- Outdoor Marine Type (saltwater)
- Paint Spray Booth Approved
- Tunable Driver for a Variable Lumen Output Range of 1,500lm to 11,000lm
Spec Sheet

C1D2: Jar

HLJL-20W-UNV

- Class 1, Div. 1: Groups C, D
- Outdoor Marine Type (saltwater)
- Paint Spray Booth Approved
- Tunable Driver for a Variable Lumen Output Range of 1,500lm to 11,000lm
Spec Sheet

HLJL-30W-UNV

- Class 1, Div. 1: Groups C, D
- Outdoor Marine Type (saltwater)
- Paint Spray Booth Approved
- Tunable Driver for a Variable Lumen Output Range of 1,500lm to 11,000lm
Spec Sheet

HLJL-40W-UNV

- Class 1, Div. 1: Groups C, D
- Outdoor Marine Type (saltwater)
- Paint Spray Booth Approved
- Tunable Driver for a Variable Lumen Output Range of 1,500lm to 11,000lm
Spec Sheet
