industrial products

Ease of Mind for Demanding Environments

Industrial lighting fixtures are durable, high-performance lights designed to provide consistent illumination in factories, warehouses, data centers, and other demanding work environments. They are built to withstand harsh conditions such as dust, moisture, vibrations, and extreme temperatures while maintaining energy efficiency and safety standards. Their importance lies in improving visibility for workers, reducing accidents, and supporting productivity by ensuring that critical tasks can be performed with accuracy and reliability.

Need Something Different?

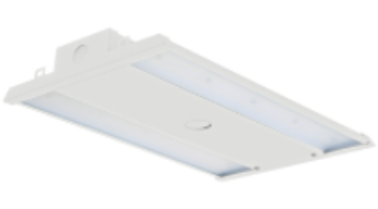

Power and CRI Adjustable 6

ADJUSTABLE DRIVER: EPSL-ADJ-UNV

- 90/130/180/210-watt, 120-277vAC, dimmable
- 13,600/20,000/25,000/30,000 lms, CCT selectable 4k-5k, 2-ft.
- 4-ft standard, 120-277VAC standard
- 347-480VAC optional, Emergency battery available

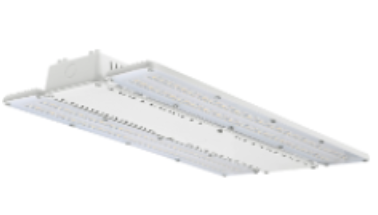

Non-Adjustable Linear 5

LHBM5-90W-UNV-D

- 12"(L) x 12.5"(W)
- 120-277VAC standard, -40°F to +130°F ambient operating temp
- 90-watts, 12,200 lumens, 80+ CRI, 4000K or 5000K, 120-degree light spread
- Emergency backup battery, Wire guard, and Dimming optional

LHBM5-130W-UNV-D

- 12"(L) x 12.5"(W)
- 120-277VAC standard, -40°F to +130°F ambient operating temp
- 120-watts, 18,300 lumens, 80+ CRI, 4000K or 5000K, 120-degree light spread
- Emergency backup battery, Wire guard, and Dimming optional

LHBM5-180W-UNV-D

- 21"(L) x 12.5"(W)
- 120-277VAC standard, -40°F to +130°F ambient operating temp
- 180-watts, 24,300 lumens, 80+ CRI, 4000K or 5000K, 120-degree light spread
- Emergency backup battery, Wire guard, and Dimming optional

LHBM5-210W-UNV-D

- 21"(L) x 12.5"(W)
- 120-277VAC standard, -40°F to +130°F ambient operating temp
- 210-watts, 30,300 lumens, 80+ CRI, 4000K or 5000K, 120-degree light spread
- Emergency backup battery, Wire guard, and Dimming optional

LHBM5-260W-UNV-D

- 12"(L) x 12.5"(W)
- 120-277VAC standard, -40°F to +130°F ambient operating temp
- 260-watts, 36,400 lumens, 80+ CRI, 4000K or 5000K, 120-degree light spread
- Emergency backup battery, Wire guard, and Dimming optional

LHBM5-360W-UNV-D

- 42"(L) x 12.5"(W)
- 120-277VAC standard, -40°F to +130°F ambient operating temp
- 360-watts, 49,000 lumens, 80+ CRI, 4000K or 5000K, 120-degree light spread
- Emergency backup battery, Wire guard, and Dimming optional

LHBM5-420W-UNV-D

- 42"(L) x 12.5"(W)
- 120-277VAC standard, -40°F to +130°F ambient operating temp
- 420-watts, 60,000 lumens, 80+ CRI, 4000K or 5000K, 120-degree light spread
- Emergency backup battery, Wire guard, and Dimming optional

EXTREME AMBIENT LINEAR HIGH BAY (80˚C)

LHBHTEL-50W-UNV-80C

- 10.7" x 14.4" x 9.6", Anodized aluminum housing and end plates
- NEMA 4X, IP66, IK10, -40°F to +130°F ambient operating temp
- 50-watts, 7,000 lumens, 80+ CRI, 4000K or 5000K, DLC, 120-degree light spread
- Emergency backup battery, 480VAC, Multiple Occupancy Sensors optional

LHBHTEL-100W-UNV-80C

- 12.1" x 14.4" x 9.6", Anodized aluminum housing and end plates
- NEMA 4X, IP66, IK10, -40°F to +130°F ambient operating temp
- 100-watts, 14,000 lumens, 80+ CRI, 4000K or 5000K, DLC, 120-degree light spread
- Emergency backup battery, 480VAC, Multiple Occupancy Sensors optional

LHBHTEL-150W-UNV-80C

- 15.4" x 14.4" x 9.6", Anodized aluminum housing and end plates
- NEMA 4X, IP66, IK10, -40°F to +130°F ambient operating temp
- 150-watts, 21,000 lumens, 80+ CRI, 4000K or 5000K, DLC, 120-degree light spread
- Emergency backup battery, 480VAC, Multiple Occupancy Sensors optional

LHBHTEL-200W-UNV-80C

- 19.5" x 14.4" x 9.6", Anodized aluminum housing and end plates
- NEMA 4X, IP66, IK10, -40°F to +130°F ambient operating temp
- 200-watts, 28,000 lumens, 80+ CRI, 4000K or 5000K, DLC, 120-degree light spread
- Emergency backup battery, 480VAC, Multiple Occupancy Sensors optional

LHBHTEL-300W-UNV-80C

- 26.9" x 14.4" x 9.6", Anodized aluminum housing and end plates
- NEMA 4X, IP66, IK10, -40°F to +130°F ambient operating temp
- 300-watts, 42,000 lumens, 80+ CRI, 4000K or 5000K, DLC, 120-degree light spread
- Emergency backup battery, 480VAC, Multiple Occupancy Sensors optional

LHBHTEL-450W-UNV-80C

- 30.8" x 14.4" x 9.6", Anodized aluminum housing and end plates
- NEMA 4X, IP66, IK10, -40°F to +130°F ambient operating temp
- 450-watts, 63,000 lumens, 80+ CRI, 4000K or 5000K, DLC, 120-degree light spread
- Emergency backup battery, 480VAC, Multiple Occupancy Sensors optional

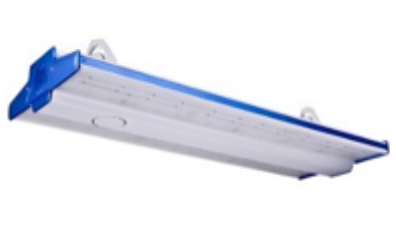

ULTRA HIGH OUTPUT, IP65 WET LOCATION

LHBHS-HB100W-2-UNV

- 12" x 7", Extruded aluminium housing with UV treated polycarbonate lens + 6' cord
- IP65, -40°F to +130°F ambient operating temp
- 100-watts, 15,200 lumens, 80+ CRI, 3500K or 7000K, 120-degree light spread
- Emergency backup battery, multiple occupancy sensors, light sensors optional

LHBHS-HB150W-2-UNV

- 12" x 7", Extruded aluminium housing with UV treated polycarbonate lens + 6' cord
- IP65, -40°F to +130°F ambient operating temp
- 100-watts, 15,200 lumens, 80+ CRI, 3500K or 7000K, 120-degree light spread
- Emergency backup battery, multiple occupancy sensors, light sensors optional

LHBHS-HB200W-2-UNV

- 12" x 7", Extruded aluminium housing with UV treated polycarbonate lens + 6' cord
- IP65, -40°F to +130°F ambient operating temp
- 100-watts, 15,200 lumens, 80+ CRI, 3500K or 7000K, 120-degree light spread
- Emergency backup battery, multiple occupancy sensors, light sensors optional

LHBHS-HB250W-2-UNV

- 23" x 7", Extruded aluminium housing with UV treated polycarbonate lens + 6' cord
- IP65, -40°F to +130°F ambient operating temp
- 100-watts, 15,200 lumens, 80+ CRI, 3500K or 7000K, 120-degree light spread
- Emergency backup battery, multiple occupancy sensors, light sensors optional

LHBHS-HB300W-2-UNV

- 23" x 7", Extruded aluminium housing with UV treated polycarbonate lens + 6' cord
- IP65, -40°F to +130°F ambient operating temp
- 100-watts, 15,200 lumens, 80+ CRI, 3500K or 7000K, 120-degree light spread
- Emergency backup battery, multiple occupancy sensors, light sensors optional

LHBHS-HB360W-2-UNV

- 23" x 7", Extruded aluminium housing with UV treated polycarbonate lens + 6' cord
- IP65, -40°F to +130°F ambient operating temp
- 100-watts, 15,200 lumens, 80+ CRI, 3500K or 7000K, 120-degree light spread
- Emergency backup battery, multiple occupancy sensors, light sensors optional

LHBHS-HB400W-2-UNV

- 34" x 7", Extruded aluminium housing with UV treated polycarbonate lens + 6' cord
- IP65, -40°F to +130°F ambient operating temp
- 100-watts, 15,200 lumens, 80+ CRI, 3500K or 7000K, 120-degree light spread
- Emergency backup battery, multiple occupancy sensors, light sensors optional

LHBHS-HB500W-2-UNV

- 34" x 7", Extruded aluminium housing with UV treated polycarbonate lens + 6' cord
- IP65, -40°F to +130°F ambient operating temp
- 100-watts, 15,200 lumens, 80+ CRI, 3500K or 7000K, 120-degree light spread
- Emergency backup battery, multiple occupancy sensors, light sensors optional

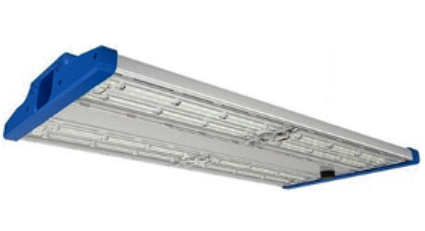

ULTRA HIGH OUTPUT, IP27 WET LOCATION - the beast series

LHBHS-HB100W-7-UNV

- 34" x 7", Extruded aluminium housing with UV treated polycarbonate lens + 6' cord
- IP65, -40°F to +130°F ambient operating temp
- 100-watts, 15,200 lumens, 80+ CRI, 3500K or 7000K, 120-degree light spread
- Emergency backup battery, multiple occupancy sensors, light sensors optional

LHBHS-HB150W-7-UNV

- 34" x 7", Extruded aluminium housing with UV treated polycarbonate lens + 6' cord
- IP65, -40°F to +130°F ambient operating temp
- 100-watts, 15,200 lumens, 80+ CRI, 3500K or 7000K, 120-degree light spread
- Emergency backup battery, multiple occupancy sensors, light sensors optional

LHBHS-HB200W-7-UNV

- 34" x 7", Extruded aluminium housing with UV treated polycarbonate lens + 6' cord
- IP65, -40°F to +130°F ambient operating temp
- 100-watts, 15,200 lumens, 80+ CRI, 3500K or 7000K, 120-degree light spread
- Emergency backup battery, multiple occupancy sensors, light sensors optional

LHBHS-HB250W-7-UNV

- 34" x 7", Extruded aluminium housing with UV treated polycarbonate lens + 6' cord
- IP65, -40°F to +130°F ambient operating temp
- 100-watts, 15,200 lumens, 80+ CRI, 3500K or 7000K, 120-degree light spread
- Emergency backup battery, multiple occupancy sensors, light sensors optional

LHBHS-HB300W-7-UNV

- 34" x 7", Extruded aluminium housing with UV treated polycarbonate lens + 6' cord
- IP65, -40°F to +130°F ambient operating temp
- 100-watts, 15,200 lumens, 80+ CRI, 3500K or 7000K, 120-degree light spread
- Emergency backup battery, multiple occupancy sensors, light sensors optional

LHBHS-HB400W-7-UNV

- 34" x 7", Extruded aluminium housing with UV treated polycarbonate lens + 6' cord
- IP65, -40°F to +130°F ambient operating temp
- 100-watts, 15,200 lumens, 80+ CRI, 3500K or 7000K, 120-degree light spread
- Emergency backup battery, multiple occupancy sensors, light sensors optional

LHBHS-HB500W-7-UNV

- 34" x 7", Extruded aluminium housing with UV treated polycarbonate lens + 6' cord
- IP65, -40°F to +130°F ambient operating temp
- 100-watts, 15,200 lumens, 80+ CRI, 3500K or 7000K, 120-degree light spread
- Emergency backup battery, multiple occupancy sensors, light sensors optional

LHBHS-HB600W-7-UNV

- 34" x 7", Extruded aluminium housing with UV treated polycarbonate lens + 6' cord
- IP65, -40°F to +130°F ambient operating temp
- 100-watts, 15,200 lumens, 80+ CRI, 3500K or 7000K, 120-degree light spread
- Emergency backup battery, multiple occupancy sensors, light sensors optional

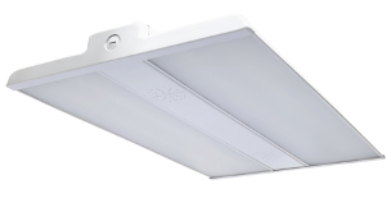

ECONOMY SERIES LINEAR HIGH BAY

LHBX-105W-UNV-D (Non-Ajustable)

- 21"(L) x 12.5"(W)
- 120-277VAC standard, -40°F to +130°F ambient operating temp
- 210-watts, 30,300 lumens, 80+ CRI, 4000K or 5000K, 120-degree light spread
- Emergency backup battery, Wire guard, and Dimming optional

LHBX-165W-UNV-D (Non-Ajustable)

- 21"(L) x 12.5"(W)
- 120-277VAC standard, -40°F to +130°F ambient operating temp
- 210-watts, 30,300 lumens, 80+ CRI, 4000K or 5000K, 120-degree light spread
- Emergency backup battery, Wire guard, and Dimming optional

LHBX-225W-UNV-D (Non-Ajustable)

- 21"(L) x 12.5"(W)
- 120-277VAC standard, -40°F to +130°F ambient operating temp
- 210-watts, 30,300 lumens, 80+ CRI, 4000K or 5000K, 120-degree light spread
- Emergency backup battery, Wire guard, and Dimming optional

LHBX-300W-UNV-D (Non-Ajustable)

- 21"(L) x 12.5"(W)
- 120-277VAC standard, -40°F to +130°F ambient operating temp
- 210-watts, 30,300 lumens, 80+ CRI, 4000K or 5000K, 120-degree light spread
- Emergency backup battery, Wire guard, and Dimming optional

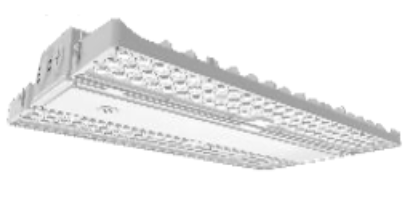

ECONOMY SERIES LINEAR HIGH BAY - Adjustable

LHBX-90/105/130W-UNV-D-4/5K (Power and CCT Adjustable)

- 21"(L) x 12.5"(W)
- 120-277VAC standard, -40°F to +130°F ambient operating temp
- 210-watts, 30,300 lumens, 80+ CRI, 4000K or 5000K, 120-degree light spread
- Emergency backup battery, Wire guard, and Dimming optional

LHBX-115/130/155W-UNV-D-4/5K (Power and CCT Adjustable)

- 21"(L) x 12.5"(W)
- 120-277VAC standard, -40°F to +130°F ambient operating temp
- 210-watts, 30,300 lumens, 80+ CRI, 4000K or 5000K, 120-degree light spread
- Emergency backup battery, Wire guard, and Dimming optional

LHBX-155/180/210W-UNV-D-4/5K (Power and CCT Adjustable)

- 21"(L) x 12.5"(W)
- 120-277VAC standard, -40°F to +130°F ambient operating temp
- 210-watts, 30,300 lumens, 80+ CRI, 4000K or 5000K, 120-degree light spread
- Emergency backup battery, Wire guard, and Dimming optional

LHBX-240/270/310W-UNV-D-4/5K (Power and CCT Adjustable)

- 21"(L) x 12.5"(W)
- 120-277VAC standard, -40°F to +130°F ambient operating temp
- 210-watts, 30,300 lumens, 80+ CRI, 4000K or 5000K, 120-degree light spread
- Emergency backup battery, Wire guard, and Dimming optional

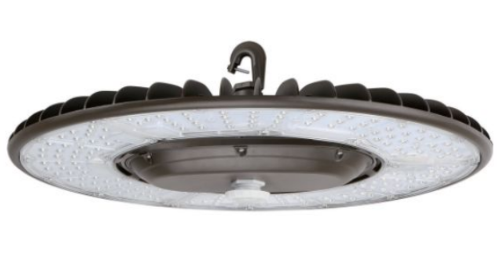

ROUND HIGH BAY SERIES

RHB5-140/210/280W/350W-UNV-D

- 24" diameter, Black enamel coated aluminium housing with glass or polycarbonate lens
- 80+ CRI, 4000K or 5000K, DLC, multiple light spreads
- Selectable wattage, 26,000 to 62,000 lumens, 0-10V dimming
- Emergency backup battery, 200-480VAC, Multiple occupancy sensors optional

RHB5-160/250/330W/410W-UNV-D

- 24" diameter, Black enamel coated aluminium housing with glass or polycarbonate lens
- 80+ CRI, 4000K or 5000K, DLC, multiple light spreads
- Selectable wattage, 31,000 to 74,000 lumens, 0-10V dimming
- Emergency backup battery, 200-480VAC, Multiple occupancy sensors optional

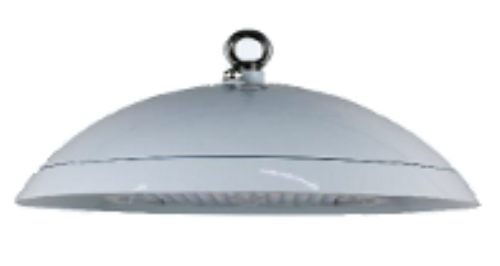

RHBX-NSF-80W-UNv

- 17" diameter, White enamel coated aluminium housing with a polycarbonate lens
- 82+ CRI, 3000K to 5700K, DLC, -40°F to + 125°F ambient
- 80-watts, 12,000 lumens, 115-degree light spread
- Emergency backup battery, Dimming, and Occupancy sensors optional

RHBX-NSF Series

- 17" diameter, White enamel coated aluminium housing with a polycarbonate lens
- 82+ CRI, 3000K to 5700K, DLC, -40°F to + 125°F ambient
- 100-watts, 15,000 lumens, 115-degree light spread
- Emergency backup battery, Dimming, and Occupancy sensors optional

RHBX-NSF Series

- 17" diameter, White enamel coated aluminium housing with a polycarbonate lens
- 82+ CRI, 3000K to 5700K, DLC, -40°F to + 125°F ambient
- 150-watts, 22,500 lumens, 115-degree light spread
- Emergency backup battery, Dimming, and Occupancy sensors optional

RHBX-NSF Series

- 17" diameter, White enamel coated aluminium housing with a polycarbonate lens
- 82+ CRI, 3000K to 5700K, DLC, -40°F to + 125°F ambient
- 200-watts, 30,000 lumens, 115-degree light spread
- Emergency backup battery, Dimming, and Occupancy sensors optional

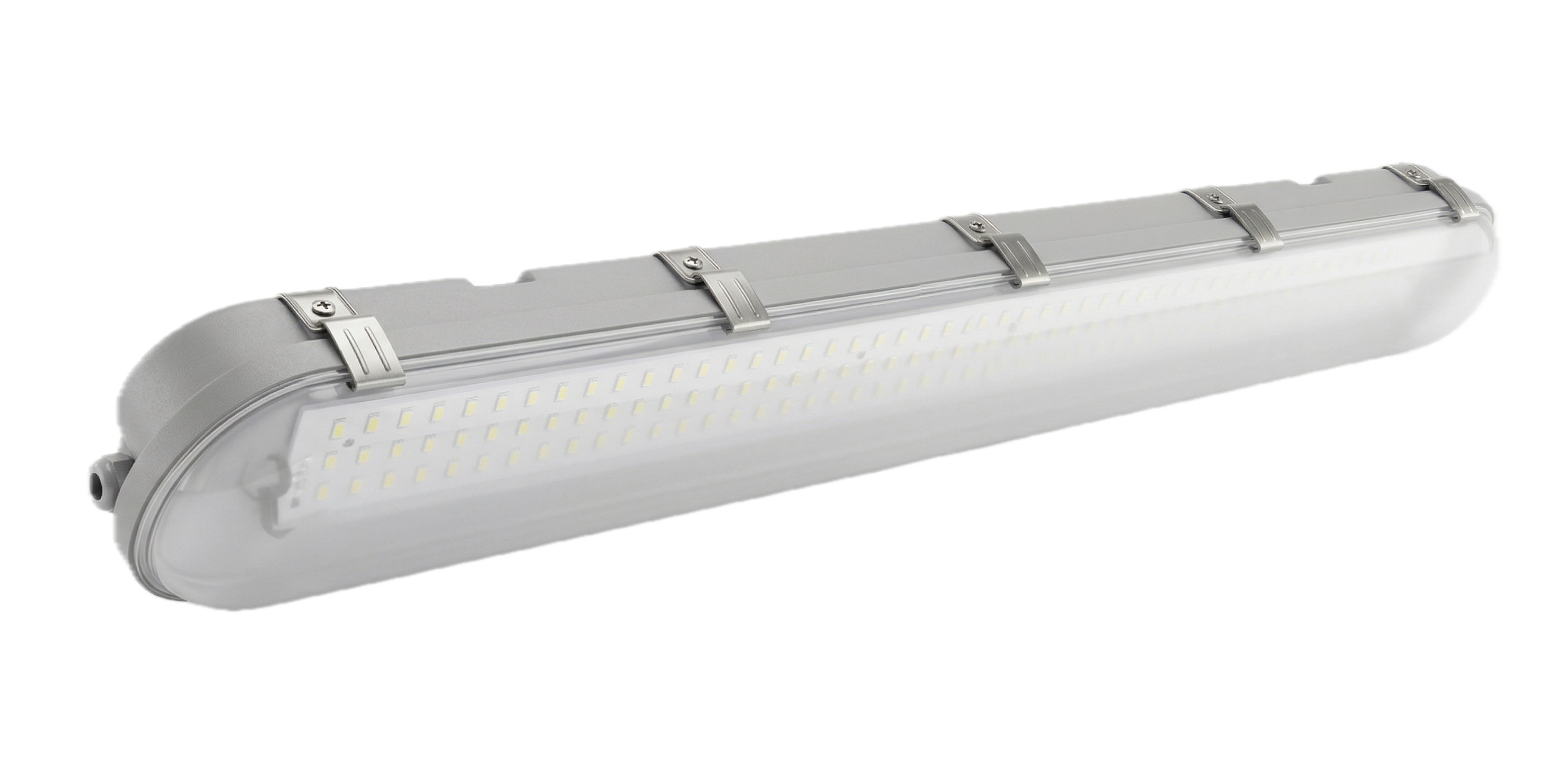

Vapor Tight - IP65

LHBX-90/105/130W-UNV-D-4/5K (Power and CCT Adjustable)

- 21"(L) x 12.5"(W)
- 120-277VAC standard, -40°F to +130°F ambient operating temp
- 210-watts, 30,300 lumens, 80+ CRI, 4000K or 5000K, 120-degree light spread
- Emergency backup battery, Wire guard, and Dimming optional

LHBX-115/130/155W-UNV-D-4/5K (Power and CCT Adjustable)

- 21"(L) x 12.5"(W)
- 120-277VAC standard, -40°F to +130°F ambient operating temp
- 210-watts, 30,300 lumens, 80+ CRI, 4000K or 5000K, 120-degree light spread
- Emergency backup battery, Wire guard, and Dimming optional

LHBX-155/180/210W-UNV-D-4/5K (Power and CCT Adjustable)

- 21"(L) x 12.5"(W)
- 120-277VAC standard, -40°F to +130°F ambient operating temp
- 210-watts, 30,300 lumens, 80+ CRI, 4000K or 5000K, 120-degree light spread
- Emergency backup battery, Wire guard, and Dimming optional

LHBX-240/270/310W-UNV-D-4/5K (Power and CCT Adjustable)

- 21"(L) x 12.5"(W)
- 120-277VAC standard, -40°F to +130°F ambient operating temp
- 210-watts, 30,300 lumens, 80+ CRI, 4000K or 5000K, 120-degree light spread
- Emergency backup battery, Wire guard, and Dimming optional

Standard Vapor Tight

RHB5-160/250/330W/410W-UNV-D

- 14" diameter, Silver enamel, copper free aluminium housing with tempered glass lens
- NEMA 4X, IP66, IK10, -40°F to +140°F ambient operating temp
- 60-watts, 8,400 lumens, 80+ CRI, 4000K or 5000K, DLC, multiple light spread options
- Emergency backup battery, Dimming, 200-480VAC optional

RHB5-160/250/330W/410W-UNV-D

- 14" diameter, Silver enamel, copper free aluminium housing with tempered glass lens
- NEMA 4X, IP66, IK10, -40°F to +140°F ambient operating temp
- 60-watts, 8,400 lumens, 80+ CRI, 4000K or 5000K, DLC, multiple light spread options
- Emergency backup battery, Dimming, 200-480VAC optional

Full Non-Metallic: HL1-2-2-LED-40W-UNV

- 14" diameter, Silver enamel, copper free aluminium housing with tempered glass lens
- NEMA 4X, IP66, IK10, -40°F to +140°F ambient operating temp
- 60-watts, 8,400 lumens, 80+ CRI, 4000K or 5000K, DLC, multiple light spread options
- Emergency backup battery, Dimming, 200-480VAC optional

Full Non-Metallic: HL1-4-2-LED-80W-UNV

- 14" diameter, Silver enamel, copper free aluminium housing with tempered glass lens
- NEMA 4X, IP66, IK10, -40°F to +140°F ambient operating temp
- 60-watts, 8,400 lumens, 80+ CRI, 4000K or 5000K, DLC, multiple light spread options
- Emergency backup battery, Dimming, 200-480VAC optional

Round Vapor Tight - IP65

LHBX-90/105/130W-UNV-D-4/5K (Power and CCT Adjustable)

- 21"(L) x 12.5"(W)
- 120-277VAC standard, -40°F to +130°F ambient operating temp
- 210-watts, 30,300 lumens, 80+ CRI, 4000K or 5000K, 120-degree light spread
- Emergency backup battery, Wire guard, and Dimming optional

LHBX-115/130/155W-UNV-D-4/5K (Power and CCT Adjustable)

- 21"(L) x 12.5"(W)
- 120-277VAC standard, -40°F to +130°F ambient operating temp
- 210-watts, 30,300 lumens, 80+ CRI, 4000K or 5000K, 120-degree light spread
- Emergency backup battery, Wire guard, and Dimming optional

LHBX-155/180/210W-UNV-D-4/5K (Power and CCT Adjustable)

- 21"(L) x 12.5"(W)
- 120-277VAC standard, -40°F to +130°F ambient operating temp
- 210-watts, 30,300 lumens, 80+ CRI, 4000K or 5000K, 120-degree light spread
- Emergency backup battery, Wire guard, and Dimming optional

LHBX-240/270/310W-UNV-D-4/5K (Power and CCT Adjustable)

- 21"(L) x 12.5"(W)
- 120-277VAC standard, -40°F to +130°F ambient operating temp
- 210-watts, 30,300 lumens, 80+ CRI, 4000K or 5000K, 120-degree light spread
- Emergency backup battery, Wire guard, and Dimming optional

Area Lights

RHB5-160/250/330W/410W-UNV-D

- 14" diameter, Silver enamel, copper free aluminium housing with tempered glass lens
- NEMA 4X, IP66, IK10, -40°F to +140°F ambient operating temp
- 60-watts, 8,400 lumens, 80+ CRI, 4000K or 5000K, DLC, multiple light spread options
- Emergency backup battery, Dimming, 200-480VAC optional

RHB5-160/250/330W/410W-UNV-D

- 14" diameter, Silver enamel, copper free aluminium housing with tempered glass lens
- NEMA 4X, IP66, IK10, -40°F to +140°F ambient operating temp
- 60-watts, 8,400 lumens, 80+ CRI, 4000K or 5000K, DLC, multiple light spread options
- Emergency backup battery, Dimming, 200-480VAC optional

Full Non-Metallic: HL1-2-2-LED-40W-UNV

- 14" diameter, Silver enamel, copper free aluminium housing with tempered glass lens
- NEMA 4X, IP66, IK10, -40°F to +140°F ambient operating temp
- 60-watts, 8,400 lumens, 80+ CRI, 4000K or 5000K, DLC, multiple light spread options
- Emergency backup battery, Dimming, 200-480VAC optional

Full Non-Metallic: HL1-4-2-LED-80W-UNV

- 14" diameter, Silver enamel, copper free aluminium housing with tempered glass lens
- NEMA 4X, IP66, IK10, -40°F to +140°F ambient operating temp
- 60-watts, 8,400 lumens, 80+ CRI, 4000K or 5000K, DLC, multiple light spread options
- Emergency backup battery, Dimming, 200-480VAC optional

non-cutoff wall packs

LHBX-90/105/130W-UNV-D-4/5K (Power and CCT Adjustable)

- 21"(L) x 12.5"(W)
- 120-277VAC standard, -40°F to +130°F ambient operating temp
- 210-watts, 30,300 lumens, 80+ CRI, 4000K or 5000K, 120-degree light spread
- Emergency backup battery, Wire guard, and Dimming optional

LHBX-115/130/155W-UNV-D-4/5K (Power and CCT Adjustable)

- 21"(L) x 12.5"(W)
- 120-277VAC standard, -40°F to +130°F ambient operating temp
- 210-watts, 30,300 lumens, 80+ CRI, 4000K or 5000K, 120-degree light spread
- Emergency backup battery, Wire guard, and Dimming optional

LHBX-155/180/210W-UNV-D-4/5K (Power and CCT Adjustable)

- 21"(L) x 12.5"(W)
- 120-277VAC standard, -40°F to +130°F ambient operating temp
- 210-watts, 30,300 lumens, 80+ CRI, 4000K or 5000K, 120-degree light spread
- Emergency backup battery, Wire guard, and Dimming optional

LHBX-240/270/310W-UNV-D-4/5K (Power and CCT Adjustable)

- 21"(L) x 12.5"(W)
- 120-277VAC standard, -40°F to +130°F ambient operating temp
- 210-watts, 30,300 lumens, 80+ CRI, 4000K or 5000K, 120-degree light spread
- Emergency backup battery, Wire guard, and Dimming optional

Full cutoff wall packs

RHB5-160/250/330W/410W-UNV-D

- 14" diameter, Silver enamel, copper free aluminium housing with tempered glass lens
- NEMA 4X, IP66, IK10, -40°F to +140°F ambient operating temp
- 60-watts, 8,400 lumens, 80+ CRI, 4000K or 5000K, DLC, multiple light spread options
- Emergency backup battery, Dimming, 200-480VAC optional

RHB5-160/250/330W/410W-UNV-D

- 14" diameter, Silver enamel, copper free aluminium housing with tempered glass lens
- NEMA 4X, IP66, IK10, -40°F to +140°F ambient operating temp
- 60-watts, 8,400 lumens, 80+ CRI, 4000K or 5000K, DLC, multiple light spread options
- Emergency backup battery, Dimming, 200-480VAC optional

Full Non-Metallic: HL1-2-2-LED-40W-UNV

- 14" diameter, Silver enamel, copper free aluminium housing with tempered glass lens
- NEMA 4X, IP66, IK10, -40°F to +140°F ambient operating temp
- 60-watts, 8,400 lumens, 80+ CRI, 4000K or 5000K, DLC, multiple light spread options
- Emergency backup battery, Dimming, 200-480VAC optional

Full Non-Metallic: HL1-4-2-LED-80W-UNV

- 14" diameter, Silver enamel, copper free aluminium housing with tempered glass lens
- NEMA 4X, IP66, IK10, -40°F to +140°F ambient operating temp
- 60-watts, 8,400 lumens, 80+ CRI, 4000K or 5000K, DLC, multiple light spread options
- Emergency backup battery, Dimming, 200-480VAC optional

Adjustable wall packs

LHBX-90/105/130W-UNV-D-4/5K (Power and CCT Adjustable)

- 21"(L) x 12.5"(W)
- 120-277VAC standard, -40°F to +130°F ambient operating temp
- 210-watts, 30,300 lumens, 80+ CRI, 4000K or 5000K, 120-degree light spread
- Emergency backup battery, Wire guard, and Dimming optional

LHBX-115/130/155W-UNV-D-4/5K (Power and CCT Adjustable)

- 21"(L) x 12.5"(W)
- 120-277VAC standard, -40°F to +130°F ambient operating temp
- 210-watts, 30,300 lumens, 80+ CRI, 4000K or 5000K, 120-degree light spread
- Emergency backup battery, Wire guard, and Dimming optional

LHBX-155/180/210W-UNV-D-4/5K (Power and CCT Adjustable)

- 21"(L) x 12.5"(W)
- 120-277VAC standard, -40°F to +130°F ambient operating temp
- 210-watts, 30,300 lumens, 80+ CRI, 4000K or 5000K, 120-degree light spread
- Emergency backup battery, Wire guard, and Dimming optional

LHBX-240/270/310W-UNV-D-4/5K (Power and CCT Adjustable)

- 21"(L) x 12.5"(W)
- 120-277VAC standard, -40°F to +130°F ambient operating temp
- 210-watts, 30,300 lumens, 80+ CRI, 4000K or 5000K, 120-degree light spread
- Emergency backup battery, Wire guard, and Dimming optional

flood lights

RHB5-160/250/330W/410W-UNV-D

- 14" diameter, Silver enamel, copper free aluminium housing with tempered glass lens
- NEMA 4X, IP66, IK10, -40°F to +140°F ambient operating temp
- 60-watts, 8,400 lumens, 80+ CRI, 4000K or 5000K, DLC, multiple light spread options
- Emergency backup battery, Dimming, 200-480VAC optional

RHB5-160/250/330W/410W-UNV-D

- 14" diameter, Silver enamel, copper free aluminium housing with tempered glass lens
- NEMA 4X, IP66, IK10, -40°F to +140°F ambient operating temp
- 60-watts, 8,400 lumens, 80+ CRI, 4000K or 5000K, DLC, multiple light spread options
- Emergency backup battery, Dimming, 200-480VAC optional

Full Non-Metallic: HL1-2-2-LED-40W-UNV

- 14" diameter, Silver enamel, copper free aluminium housing with tempered glass lens
- NEMA 4X, IP66, IK10, -40°F to +140°F ambient operating temp
- 60-watts, 8,400 lumens, 80+ CRI, 4000K or 5000K, DLC, multiple light spread options
- Emergency backup battery, Dimming, 200-480VAC optional

Full Non-Metallic: HL1-4-2-LED-80W-UNV

- 14" diameter, Silver enamel, copper free aluminium housing with tempered glass lens
- NEMA 4X, IP66, IK10, -40°F to +140°F ambient operating temp
- 60-watts, 8,400 lumens, 80+ CRI, 4000K or 5000K, DLC, multiple light spread options
- Emergency backup battery, Dimming, 200-480VAC optional

TRUEX LIGHTING

Offices in Tulsa, OK and Denver, CO

Remit All Payments To:
TRUEX, LLC
P.O. BOX 25277
Overland Park, KS 66225

Contact: info@truexlighting.com or 720-845-5754
