Classified Fixtures

What's the difference between C1D1 and C1D2?

At their core, both C1D1 and C1D2 fixtures are designed to withstand an explosion and not make the situation worse by exposing an electrical current into a volatile environment. The main difference is the C1D1 fixtures are built to withstand an explosion from both outside the fixture and inside the fixture (possible leakage into the housing), while C1D2 fixtures are built to only withstand an external explosion. All of our fixtures are IP66 or higher, IK10 or higher, and NEMA 4X so you can be assured your facility is receiving the best quality products, and ensuring the safety of your workers.

Need Something Different?

Class 1, Division 1

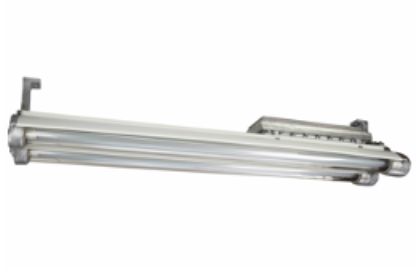

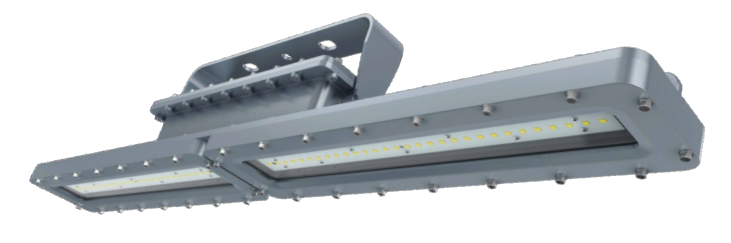

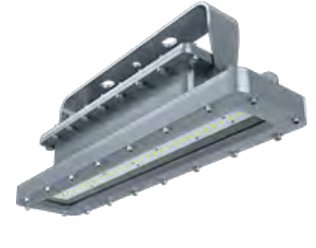

c1d1: Linear

Environments that Require:
● Class I, Division 1, Groups C, D
● Class I, Division II: Groups A, B, C, D
● Class II, Division I: Groups E, F, G
● Class II, Division II: Groups E, F, G
● Class III
● UL 844 Hazardous Locations | UL 924 Emergency Lighting | UL 1598A Marine Outside Type

EPLLB-20W-UNV

- 2-ft length, Silver enamel on copper free aluminium housing with tempered glass lens
- NEMA 4X, IP66, IK10, -40°F to +140°F ambient operating temp
- 20-watts, 2,800 lumens, 80+ CRI, 4000K or 5000K, DLC, multiple light spread options
- Emergency backup battery, Dimming, 200-480VAC optional

EPLLB-40W-UNV

- 2-ft length, Silver enamel on copper free aluminium housing with tempered glass lens
- NEMA 4X, IP66, IK10, -40°F to +140°F ambient operating temp
- 40-watts, 5,600 lumens, 80+ CRI, 4000K or 5000K, DLC, multiple light spread options
- Emergency backup battery, Dimming, 200-480VAC optional

EPLLB-60W-UNV

- 2-ft length, Silver enamel on copper free aluminium housing with tempered glass lens
- NEMA 4X, IP66, IK10, -40°F to +140°F ambient operating temp
- 60-watts, 8,400 lumens, 80+ CRI, 4000K or 5000K, DLC, multiple light spread options
- Emergency backup battery, Dimming, 200-480VAC optional

EPLLB-40W-UNV

- 4-ft length, Silver enamel on copper free aluminium housing with tempered glass lens
- NEMA 4X, IP66, IK10, -40°F to +140°F ambient operating temp
- 40-watts, 5,600 lumens, 80+ CRI, 4000K or 5000K, DLC, multiple light spread options
- Emergency backup battery, Dimming, 200-480VAC optional

EPLLB-60W-UNV

- 4-ft length, Silver enamel on copper free aluminium housing with tempered glass lens
- NEMA 4X, IP66, IK10, -40°F to +140°F ambient operating temp
- 60-watts, 8,400 lumens, 80+ CRI, 4000K or 5000K, DLC, multiple light spread options
- Emergency backup battery, Dimming, 200-480VAC optional

EPLLB-80W-UNV

- 4-ft length, Silver enamel on copper free aluminium housing with tempered glass lens
- NEMA 4X, IP66, IK10, -40°F to +140°F ambient operating temp
- 80-watts, 11,200 lumens, 80+ CRI, 4000K or 5000K, DLC, multiple light spread options
- Emergency backup battery, Dimming, 200-480VAC optional

EPLLB-100W-UNV

- 4-ft length, Silver enamel on copper free aluminium housing with tempered glass lens
- NEMA 4X, IP66, IK10, -40°F to +140°F ambient operating temp
- 100-watts, 14,000 lumens, 80+ CRI, 4000K or 5000K, DLC, multiple light spread options
- Emergency backup battery, Dimming, 200-480VAC optional

EPLLB-120W-UNV

- 4-ft length, Silver enamel on copper free aluminium housing with tempered glass lens
- NEMA 4X, IP66, IK10, -40°F to +140°F ambient operating temp
- 120-watts, 16,800 lumens, 80+ CRI, 4000K or 5000K, DLC, multiple light spread options
- Emergency backup battery, Dimming, 200-480VAC optional

c1d1: Adjustable lumen output Linear

Environments that Require:
● Class 1, Division 1: Groups C, D
● Class I, Division II, Groups: A, B, C, D
● Class II, Division I, Groups: F, G
● Class II, Division II, Groups: E, F, G
● Class III
● UL 844 Hazardous Locations | UL 924 Emergency Lighting | UL 1598A Marine Outside Type

EPL-ADJW-UNV

- 4-ft length, Copper free extruded aluminum housing with heavy gauge extruded reflectors
- NEMA 4X, IP66, IK10, -40°F to +105°F ambient operating temp
- Adjustable Driver for a Variable Lumen Output Range of 1,500lm to 11,000lm
- 347-480VAC optional, Emergency battery available

c1d1: Square

Environments that Require:
● Class I, Division 1, Groups C, D
● Class I, Division II: Groups A, B, C, D
● Class II, Division I: Groups E, F, G
● Class II, Division II: Groups E, F, G
● Class III
● UL 844 Hazardous Locations | UL 924 Emergency Lighting | UL 1598A Marine Outside Type

EPSFL-20W-UNV

- 11.6" x 11.6", Silver enamel on copper free aluminium housing with tempered glass lens
- NEMA 4X, IP66, IK10, -40°F to +140°F ambient operating temp
- 20-watts, 2,800 lumens, 80+ CRI, 4000K or 5000K, DLC, multiple light spread options
- Emergency backup battery, Dimming, 200-480VAC optional

EPSFL-40W-UNV

- 11.6" x 11.6", Silver enamel on copper free aluminium housing with tempered glass lens
- NEMA 4X, IP66, IK10, -40°F to +140°F ambient operating temp
- 40-watts, 5,600 lumens, 80+ CRI, 4000K or 5000K, DLC, multiple light spread options
- Emergency backup battery, Dimming, 200-480VAC optional

EPSFL-60W-UNV

- 11.6" x 11.6", Silver enamel on copper free aluminium housing with tempered glass lens
- NEMA 4X, IP66, IK10, -40°F to +140°F ambient operating temp
- 60-watts, 8,400 lumens, 80+ CRI, 4000K or 5000K, DLC, multiple light spread options
- Emergency backup battery, Dimming, 200-480VAC optional

EPSFL-80W-UNV

- 11.6" x 11.6", Silver enamel on copper free aluminium housing with tempered glass lens
- NEMA 4X, IP66, IK10, -40°F to +140°F ambient operating temp
- 80-watts, 11,200 lumens, 80+ CRI, 4000K or 5000K, DLC, multiple light spread options
- Emergency backup battery, Dimming, 200-480VAC optional

EPSFL-100W-UNV

- 15.7" x 11.2", Silver enamel on copper free aluminium housing with tempered glass lens
- NEMA 4X, IP66, IK10, -40°F to +140°F ambient operating temp
- 100-watts, 14,000 lumens, 80+ CRI, 4000K or 5000K, DLC, multiple light spread options
- Emergency backup battery and Dimming optional

EPSFL-120W-UNV

- 15.7" x 11.2", Silver enamel on copper free aluminium housing with tempered glass lens
- NEMA 4X, IP66, IK10, -40°F to +140°F ambient operating temp
- 120-watts, 16,800 lumens, 80+ CRI, 4000K or 5000K, DLC, multiple light spread options
- Emergency backup battery, Dimming, 200-480VAC optional

EPSFL-150W-UNV

- 15.7" x 11.2", Silver enamel on copper free aluminium housing with tempered glass lens
- NEMA 4X, IP66, IK10, -40°F to +140°F ambient operating temp
- 150-watts, 21,000 lumens, 80+ CRI, 4000K or 5000K, DLC, multiple light spread options
- Emergency backup battery, Dimming, 200-480VAC optional

EPSFL-200W-UNV

- 15.7" x 11.2", Silver enamel on copper free aluminium housing with tempered glass lens
- NEMA 4X, IP66, IK10, -40°F to +140°F ambient operating temp
- 200-watts, 28,000 lumens, 80+ CRI, 4000K or 5000K, DLC, multiple light spread options
- Emergency backup battery, Dimming, 200-480VAC optional

EPSFL-220W-UNV

- 15.7" x 11.2", Silver enamel on copper free aluminium housing with tempered glass lens
- NEMA 4X, IP66, IK10, -40°F to +140°F ambient operating temp
- 220-watts, 30,800 lumens, 80+ CRI, 4000K or 5000K, DLC, multiple light spread options
- Emergency backup battery, Dimming, 200-480VAC optional

c1d1 - round

Environments that Require:
● Class I, Division 1, Groups C, D
● Class I, Division II: Groups A, B, C, D
● Class II, Division I: Groups E, F, G
● Class II, Division II: Groups E, F, G
● Class III
● UL 844 Hazardous Locations | UL 924 Emergency Lighting | UL 1598A Marine Outside Type

EPRFL-20W-UNV

- 14" diameter, Silver enamel, copper free aluminium housing with tempered glass lens
- NEMA 4X, IP66, IK10, -40°F to +140°F ambient operating temp
- 20-watts, 2,800 lumens, 80+ CRI, 4000K or 5000K, DLC, multiple light spread options
- Emergency backup battery, Dimming, 200-480VAC optional

EPRFL-40W-UNV

- 14" diameter, Silver enamel, copper free aluminium housing with tempered glass lens
- NEMA 4X, IP66, IK10, -40°F to +140°F ambient operating temp
- 40-watts, 5,600 lumens, 80+ CRI, 4000K or 5000K, DLC, multiple light spread options
- Emergency backup battery, Dimming, 200-480VAC optional

EPRFL-60W-UNV

- 14" diameter, Silver enamel, copper free aluminium housing with tempered glass lens
- NEMA 4X, IP66, IK10, -40°F to +140°F ambient operating temp
- 60-watts, 8,400 lumens, 80+ CRI, 4000K or 5000K, DLC, multiple light spread options
- Emergency backup battery, Dimming, 200-480VAC optional

EPRFL-80W-UNV

- 14" diameter, Silver enamel, copper free aluminium housing with tempered glass lens
- NEMA 4X, IP66, IK10, -40°F to +140°F ambient operating temp
- 80-watts, 10,800 lumens, 80+ CRI, 4000K or 5000K, DLC, multiple light spread options
- Emergency backup battery, Dimming, 200-480VAC optional

EPRFL-100W-UNV

- 16" diameter, Silver enamel, copper free aluminium housing with tempered glass lens
- NEMA 4X, IP66, IK10, -40°F to +140°F ambient operating temp
- 100-watts, 13,500 lumens, 80+ CRI, 4000K or 5000K, DLC, multiple light spread options
- Emergency backup battery, Dimming, 200-480VAC optional

EPRFL-150W-UNV

- 16" diameter, Silver enamel, copper free aluminium housing with tempered glass lens
- NEMA 4X, IP66, IK10, -40°F to +140°F ambient operating temp
- 150-watts, 20,250 lumens, 80+ CRI, 4000K or 5000K, DLC, multiple light spread options
- Emergency backup battery, Dimming, 200-480VAC optional

EPRFL-200W-UNV

- 16" diameter, Silver enamel, copper free aluminium housing with tempered glass lens
- NEMA 4X, IP66, IK10, -40°F to +140°F ambient operating temp
- 200-watts, 27,000 lumens, 80+ CRI, 4000K or 5000K, DLC, multiple light spread options
- Emergency backup battery, Dimming, 200-480VAC optional

EPRFL-250W-UNV

- 17" diameter, Silver enamel, copper free aluminium housing with tempered glass lens
- NEMA 4X, IP66, IK10, -40°F to +140°F ambient operating temp
- 250-watts, 32,500 lumens, 80+ CRI, 4000K or 5000K, DLC, multiple light spread options
- Emergency backup battery, Dimming, 200-480VAC optional

EPRFL-280W-UNV

- 17" diameter, Silver enamel, copper free aluminium housing with tempered glass lens
- NEMA 4X, IP66, IK10, -40°F to +140°F ambient operating temp
- 280-watts, 38,000 lumens, 80+ CRI, 4000K or 5000K, DLC, multiple light spread options
- Emergency backup battery, Dimming, 200-480VAC optional

c1d1: Jar

Environments that Require:
● Class I, Division 1, Groups C, D
● Class I, Division II: Groups A, B, C, D
● Class II, Division I: Groups E, F, G
● Class II, Division II: Groups E, F, G
● Class III
● UL 844 Hazardous Locations | UL 924 Emergency Lighting | UL 1598A Marine Outside Type

EPJL-20W-UNV

- 6.8" diameter, Silver enamel on copper free aluminium housing with tempered glass lens
- NEMA 4X, IP66, IK10, -40°F to +140°F ambient operating temp
- 20-watts, 2,700 lumens, 80+ CRI, 4000K or 5000K, DLC, multiple light spread options
- Emergency backup battery, Dimming, 200-480VAC optional

EPJL-30W-UNV

- 6.8" diameter, Silver enamel on copper free aluminium housing with tempered glass lens
- NEMA 4X, IP66, IK10, -40°F to +140°F ambient operating temp
- 30-watts, 4,050 lumens, 80+ CRI, 4000K or 5000K, DLC, multiple light spread options
- Emergency backup battery, Dimming, 200-480VAC optional

EPJL-40W-UNV

- 6.8" diameter, Silver enamel on copper free aluminium housing with tempered glass lens
- NEMA 4X, IP66, IK10, -40°F to +140°F ambient operating temp
- 40-watts, 5,400 lumens, 80+ CRI, 4000K or 5000K, DLC, multiple light spread options
- Emergency backup battery, Dimming, 200-480VAC optional

c1d1: Exit Signs

Environments that Require:
● Class I, Division 1, Groups C, D
● Class I, Division II: Groups A, B, C, D
● Class II, Division I: Groups E, F, G
● Class II, Division II: Groups E, F, G
● Class III
● UL 844 Hazardous Locations | UL 924 Emergency Lighting | UL 1598A Marine Outside Type

EPJEX-3W-UNV

- Class 1, Div. 1: Groups C, D
- Outdoor Marine Type (saltwater)
- Paint Spray Booth Approved
- Tunable Driver for a Variable Lumen Output Range of 1,500lm to 11,000lm

EPJEXCOMBO-5W-UNV

- Class 1, Div. 1: Groups C, D
- Outdoor Marine Type (saltwater)
- Paint Spray Booth Approved
- Tunable Driver for a Variable Lumen Output Range of 1,500lm to 11,000lm

Class 1, Division 2

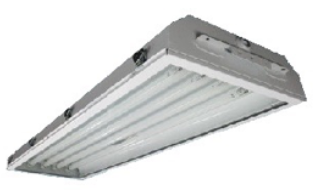

c1d2: Linear

Environments that Require:
● Class I, Division II: Groups A, B, C, D
● Class II, Division I: Groups E, F, G
● Class II, Division II: Groups E, F, G
● Class III
● UL 844 Hazardous Locations | UL 924 Emergency Lighting | UL 1598A Marine Outside Type

Low Bay: HLLLB-20W-UNV

- 2-ft length, Silver enamel on copper free aluminium housing with tempered glass lens
- NEMA 4X, IP66, IK10, -40°F to +140°F ambient operating temp
- 20-watts, 2,800 lumens, 80+ CRI, 4000K or 5000K, DLC, multiple light spreads
- Emergency backup battery, Dimming, 200-480VAC optional

Low Bay: HLLLB-40W-UNV

- 2-ft or length, Silver enamel on copper free aluminium housing with tempered glass lens
- NEMA 4X, IP66, IK10, -40°F to +140°F ambient operating temp
- 40-watts, 5,600 lumens, 80+ CRI, 4000K or 5000K, DLC, multiple light spreads
- Emergency backup battery, Dimming, 200-480VAC optional

Low Bay: HLLLB-40W-UNV

- 4-ft length, Silver enamel on copper free aluminium housing with tempered glass lens
- NEMA 4X, IP66, IK10, -40°F to +140°F ambient operating temp
- 40-watts, 5,600 lumens, 80+ CRI, 4000K or 5000K, DLC, multiple light spreads
- Emergency backup battery, Dimming, 200-480VAC optional

Low Bay: HLLLB-60W-UNV

- 4-ft length, Silver enamel on copper free aluminium housing with tempered glass lens
- NEMA 4X, IP66, IK10, -40°F to +140°F ambient operating temp
- 60-watts, 8,400 lumens, 80+ CRI, 4000K or 5000K, DLC, multiple light spreads
- Emergency backup battery, Dimming, 200-480VAC optional

Low Bay: HLLLB-80W-UNV

- 4-ft length, Silver enamel on copper free aluminium housing with tempered glass lens
- NEMA 4X, IP66, IK10, -40°F to +140°F ambient operating temp
- 80-watts, 11,200 lumens, 80+ CRI, 4000K or 5000K, DLC, multiple light spreads
- Emergency backup battery, Dimming, 200-480VAC optional

c1d2: Linear Metaliic

Environments that Require:
● Class I, Division II, Groups: A, B, C, D
● Class II, Division II, Groups: E, F, G
● Class III
● UL 844 Hazardous Locations | UL 924 Emergency Lighting | UL 1598A Marine Outside Type

Full Metallic: HLM-ADJW-UNV

- 2-ft or 4-ft length, Copper free extruded aluminum housing with tempered glass lens
- NEMA 4X, IP66, IK10, -40°F to +105°F ambient operating temp
- Adjustable Driver for a Variable Lumen Output Range of 1,500lm to 11,000lm
- 347-480VAC optional, Emergency battery available

c1d2: Linear Non-metallic and fully adjustable

Environments that Require:
● Class I, Division II, Groups: A, B, C, D
● Class II, Division II, Groups: E, F, G
● Class III
● UL 844 Hazardous Locations | UL 924 Emergency Lighting | UL 1598A Marine Outside Type

Full Non-Metallic: HLNM-ADJW-UNV

- 2-ft or 4-ft length, Copper free extruded aluminum housing with tempered glass lens
- NEMA 4X, IP66, IK10, -40°F to +130°F ambient operating temp
- Adjustable Driver for a Variable Lumen Output Range of 1,500lm to 11,000lm
- 347-480VAC optional, Emergency battery available

c1d2: Linear Panel

Environments that Require:
● Class I, Division II, Groups: A, B, C, D
● Class II, Division II, Groups: E, F, G
● Class III
● UL 844 Hazardous Locations | UL 924 Emergency Lighting | UL 1598A Marine Outside Type

High Bay: HLP-ADJW-UNV

- 2-ft or 4-ft length, Copper free extruded aluminum housing with tempered glass lens
- NEMA 4X, IP66, IK10, -40°F to +130°F ambient operating temp
- Adjustable Driver for a Variable Lumen Output Range of 1,500lm to 11,000lm
- 347-480VAC optional, Emergency battery available

C1D2: Square

Environments that Require:
● Class I, Division II: Groups A, B, C, D
● Class II, Division I: Groups E, F, G
● Class II, Division II: Groups E, F, G
● Class III
● UL 844 Hazardous Locations | UL 924 Emergency Lighting | UL 1598A Marine Outside Type

HLSL-20W-UNV

- 10.2" x 6.3", Silver enamel on copper free aluminium housing with tempered glass lens
- NEMA 4X, IP66, IK10, -40°F to +140°F ambient operating temp
- 20-watts, 2,800 lumens, 80+ CRI, 4000K or 5000K, DLC, multiple light spreads
- Emergency backup battery, Dimming, 200-480VAC optional

HLSAL-40W-UNV

- 10.2" x 6.3"", Silver enamel on copper free aluminium housing with tempered glass lens
- NEMA 4X, IP66, IK10, -40°F to +140°F ambient operating temp
- 40-watts, 5,600 lumens, 80+ CRI, 4000K or 5000K, DLC, multiple light spreads
- Emergency backup battery, Dimming, 200-480VAC optional

HLSAL-60W-UNV

- 10.2" x 6.3"", Silver enamel on copper free aluminium housing with tempered glass lens
- NEMA 4X, IP66, IK10, -40°F to +140°F ambient operating temp
- 60-watts, 8,400 lumens, 80+ CRI, 4000K or 5000K, DLC, multiple light spreads
- Emergency backup battery, Dimming, 200-480VAC optional

HLSAL-80W-UNV

- 12.5" x 9.5", Silver enamel on copper free aluminium housing with tempered glass lens
- NEMA 4X, IP66, IK10, -40°F to +140°F ambient operating temp
- 80-watts, 11,200 lumens, 80+ CRI, 4000K or 5000K, DLC, multiple light spreads
- Emergency backup battery, Dimming, 200-480VAC optional

HLSAL-100W-UNV

- 12.5" x 9.5", Silver enamel on copper free aluminium housing with tempered glass lens
- NEMA 4X, IP66, IK10, -40°F to +140°F ambient operating temp
- 100-watts, 14,000 lumens, 80+ CRI, 4000K or 5000K, DLC, multiple light spreads
- Emergency backup battery, Dimming, 200-480VAC optional

HLSAL-120W-UNV

- 14.9" x 9.1", Silver enamel on copper free aluminium housing with tempered glass lens
- NEMA 4X, IP66, IK10, -40°F to +140°F ambient operating temp
- 120-watts, 16,800 lumens, 80+ CRI, 4000K or 5000K, DLC, multiple light spreads
- Emergency backup battery, Dimming, 200-480VAC optional

HLSAL-150W-UNV

- 14.9" x 9.1", Silver enamel on copper free aluminium housing with tempered glass lens
- NEMA 4X, IP66, IK10, -40°F to +140°F ambient operating temp
- 150-watts, 21,000 lumens, 80+ CRI, 4000K or 5000K, DLC, multiple light spreads
- Emergency backup battery, Dimming, 200-480VAC optional

HLSAL-180W-UNV

- 14.9" x 9.1", Silver enamel on copper free aluminium housing with tempered glass lens
- NEMA 4X, IP66, IK10, -40°F to +140°F ambient operating temp
- 180-watts, 25,200 lumens, 80+ CRI, 4000K or 5000K, DLC, multiple light spreads
- Emergency backup battery, Dimming, 200-480VAC optional

HLSAL-200W-UNV

- 14.9" x 9.1", Silver enamel on copper free aluminium housing with tempered glass lens
- NEMA 4X, IP66, IK10, -40°F to +140°F ambient operating temp
- 200-watts, 28,000 lumens, 80+ CRI, 4000K or 5000K, DLC, multiple light spreads
- Emergency backup battery, Dimming, 200-480VAC optional

HLSAL-250W-UNV

- 16.6" x 11.8", Silver enamel on copper free aluminium housing with tempered glass lens
- NEMA 4X, IP66, IK10, -40°F to +140°F ambient operating temp
- 220-watts, 35,000 lumens, 80+ CRI, 4000K or 5000K, DLC, multiple light spreads
- Emergency backup battery, Dimming, 200-480VAC optional

HLSAL-300W-UNV

- 16.6" x 11.8", Silver enamel on copper free aluminium housing with tempered glass lens
- NEMA 4X, IP66, IK10, -40°F to +140°F ambient operating temp
- 300-watts, 42,000 lumens, 80+ CRI, 4000K or 5000K, DLC, multiple light spreads
- Emergency backup battery, Dimming, 200-480VAC optional

HLSAL-350W-UNV

- 16.6" x 11.8", Silver enamel on copper free aluminium housing with tempered glass lens
- NEMA 4X, IP66, IK10, -40°F to +140°F ambient operating temp
- 350-watts, 49,000 lumens, 80+ CRI, 4000K or 5000K, DLC, multiple light spreads
- Emergency backup battery, Dimming, 200-480VAC optional

HLSAL-400W-UNV

- 16.6" x 11.8", Silver enamel on copper free aluminium housing with tempered glass lens
- NEMA 4X, IP66, IK10, -40°F to +140°F ambient operating temp
- 400-watts, 56,000 lumens, 80+ CRI, 4000K or 5000K, DLC, multiple light spreads
- Emergency backup battery, Dimming, 200-480VAC optional

C1D2: Round

Environments that Require:
● Class I, Division II: Groups A, B, C, D
● Class II, Division I: Groups E, F, G
● Class II, Division II: Groups E, F, G
● Class III
● UL 844 Hazardous Locations | UL 924 Emergency Lighting | UL 1598A Marine Outside Type

HLRAL-20W-UNV

- 9.1" diameter, Silver enamel, copper free aluminium housing with tempered glass lens
- NEMA 4X, IP66, IK10, -40°F to +140°F ambient operating temp
- 20-watts, 2,800 lumens, 80+ CRI, 4000K or 5000K, DLC, multiple light spreads
- Emergency backup battery, Dimming, 200-480VAC optional

HLRAL-40W-UNV

- 9.1" diameter, Silver enamel, copper free aluminium housing with tempered glass lens
- NEMA 4X, IP66, IK10, -40°F to +140°F ambient operating temp
- 40-watts, 5,600 lumens, 80+ CRI, 4000K or 5000K, DLC, multiple light spreads
- Emergency backup battery, Dimming, 200-480VAC optional

HLRAL-60W-UNV

- 10.6" diameter, Silver enamel, copper free aluminium housing with tempered glass lens
- NEMA 4X, IP66, IK10, -40°F to +140°F ambient operating temp
- 60-watts, 8,400 lumens, 80+ CRI, 4000K or 5000K, DLC, multiple light spreads
- Emergency backup battery, Dimming, 200-480VAC optional

HLRAL-80W-UNV

- 10.6" diameter, Silver enamel, copper free aluminium housing with tempered glass lens
- NEMA 4X, IP66, IK10, -40°F to +140°F ambient operating temp
- 80-watts, 11,200 lumens, 80+ CRI, 4000K or 5000K, DLC, multiple light spreads
- Emergency backup battery, Dimming, 200-480VAC optional

HLRAL-100W-UNV

- 14.6" diameter, Silver enamel, copper free aluminium housing with tempered glass lens
- NEMA 4X, IP66, IK10, -40°F to +140°F ambient operating temp
- 100-watts, 14,000 lumens, 80+ CRI, 4000K or 5000K, DLC, multiple light spreads
- Emergency backup battery, Dimming, 200-480VAC optional

HLRAL-120W-UNV

- 14.6" diameter, Silver enamel, copper free aluminium housing with tempered glass lens
- NEMA 4X, IP66, IK10, -40°F to +140°F ambient operating temp
- 120-watts, 16,800 lumens, 80+ CRI, 4000K or 5000K, DLC, multiple light spreads
- Emergency backup battery, Dimming, 200-480VAC optional

HLRAL-150W-UNV

- 14.6" diameter, Silver enamel, copper free aluminium housing with tempered glass lens
- NEMA 4X, IP66, IK10, -40°F to +140°F ambient operating temp
- 150-watts, 21,000 lumens, 80+ CRI, 4000K or 5000K, DLC, multiple light spreads
- Emergency backup battery, Dimming, 200-480VAC optional

HLRAL-180W-UNV

- 14.6" diameter, Silver enamel, copper free aluminium housing with tempered glass lens
- NEMA 4X, IP66, IK10, -40°F to +140°F ambient operating temp
- 180-watts, 25,200 lumens, 80+ CRI, 4000K or 5000K, DLC, multiple light spreads
- Emergency backup battery, Dimming, 200-480VAC optional

HLRAL-200W-UNV

- 14.6" diameter, Silver enamel, copper free aluminium housing with tempered glass lens
- NEMA 4X, IP66, IK10, -40°F to +140°F ambient operating temp
- 200-watts, 28,000 lumens, 80+ CRI, 4000K or 5000K, DLC, multiple light spreads
- Emergency backup battery, Dimming, 200-480VAC optional

HLRAL-250W-UNV

- 18.9" diameter, Silver enamel, copper free aluminium housing with tempered glass lens
- NEMA 4X, IP66, IK10, -40°F to +140°F ambient operating temp
- 250-watts, 35,000 lumens, 80+ CRI, 4000K or 5000K, DLC, multiple light spreads
- Emergency backup battery, Dimming, 200-480VAC optional

HLRAL-300W-UNV

- 18.9" diameter, Silver enamel, copper free aluminium housing with tempered glass lens
- NEMA 4X, IP66, IK10, -40°F to +140°F ambient operating temp
- 300-watts, 42,000 lumens, 80+ CRI, 4000K or 5000K, DLC, multiple light spreads
- Emergency backup battery, Dimming, 200-480VAC optional

HLRAL-350W-UNV

- 18.9" diameter, Silver enamel, copper free aluminium housing with tempered glass lens
- NEMA 4X, IP66, IK10, -40°F to +140°F ambient operating temp
- 250-watts, 49,000 lumens, 80+ CRI, 4000K or 5000K, DLC, multiple light spreads
- Emergency backup battery, Dimming, 200-480VAC optional

HLRAL-400W-UNV

- 18.9" diameter, Silver enamel, copper free aluminium housing with tempered glass lens
- NEMA 4X, IP66, IK10, -40°F to +140°F ambient operating temp
- 400-watts, 56,000 lumens, 80+ CRI, 4000K or 5000K, DLC, multiple light spreads
- Emergency backup battery, Dimming, 200-480VAC optional

C1D2: Jar

Environments that Require:
● Class I, Division II: Groups A, B, C, D
● Class II, Division I: Groups E, F, G
● Class II, Division II: Groups E, F, G
● Class III
● UL 844 Hazardous Locations | UL 924 Emergency Lighting | UL 1598A Marine Outside Type

HLJL-20W-UNV

- 5.3" diameter, Silver enamel on copper free aluminium housing with tempered glass lens
- NEMA 4X, IP66, IK10, -40°F to +140°F ambient operating temp
- 20-watts, 2,800 lumens, 80+ CRI, 4000K or 5000K, DLC, multiple light spreads
- Dimming, Surface/Pendant/Arm mounting, Full Light Jar with Guard optional

HLJL-30W-UNV

- 5.3" diameter, Silver enamel on copper free aluminium housing with tempered glass lens
- NEMA 4X, IP66, IK10, -40°F to +140°F ambient operating temp
- 30-watts, 4,200 lumens, 80+ CRI, 4000K or 5000K, DLC, multiple light spreads
- Dimming, Surface/Pendant/Arm mounting, Full Light Jar with Guard optional

HLJL-40W-UNV

- 5.3" diameter, Silver enamel on copper free aluminium housing with tempered glass lens
- NEMA 4X, IP66, IK10, -40°F to +140°F ambient operating temp
- 40-watts, 5,600 lumens, 80+ CRI, 4000K or 5000K, DLC, multiple light spreads
- Dimming, Surface/Pendant/Arm mounting, Full Light Jar with Guard optional

C1D2: Flood / Parking

Environments that Require:
● Class I, Division II: Groups A, B, C, D
● Class II, Division I: Groups E, F, G
● Class II, Division II: Groups E, F, G
● Class III
● UL 844 Hazardous Locations | UL 924 Emergency Lighting | UL 1598A Marine Outside Type

HLSTALL-100W-UNV

- 17.1" x 10.9", Black enamel on copper free aluminium housing with tempered glass lens
- NEMA 4X, IP66, IK10, -40°F to +140°F ambient operating temp
- 100-watts, 7,800 lumens, 80+ CRI, 4000K or 5000K, DLC, multiple light spreads
- Emergency backup battery, Dimming, 200-480VAC optional

HLSTALL-150W-UNV

- 17.1" x 10.9", Black enamel on copper free aluminium housing with tempered glass lens
- NEMA 4X, IP66, IK10, -40°F to +140°F ambient operating temp
- 150-watts, 13,000 lumens, 80+ CRI, 4000K or 5000K, DLC, multiple light spreads
- Emergency backup battery, Dimming, 200-480VAC optional

HLSTALL-200W-UNV

- 17.1" x 10.9", Black enamel on copper free aluminium housing with tempered glass lens
- NEMA 4X, IP66, IK10, -40°F to +140°F ambient operating temp
- 200-watts, 19,500 lumens, 80+ CRI, 4000K or 5000K, DLC, multiple light spreads
- Emergency backup battery, Dimming, 200-480VAC optional

HLSTALL-300W-UNV

- 17.1" x 10.9", Black enamel on copper free aluminium housing with tempered glass lens
- NEMA 4X, IP66, IK10, -40°F to +140°F ambient operating temp
- 300-watts, 29,250 lumens, 80+ CRI, 4000K or 5000K, DLC, multiple light spreads
- Emergency backup battery, Dimming, 200-480VAC optional

c1d2: Exit Signs

Environments that Require:
● Class I, Division II: Groups A, B, C, D
● Class II, Division I: Groups E, F, G
● Class II, Division II: Groups E, F, G
● Class III
● UL 844 Hazardous Locations | UL 924 Emergency Lighting | UL 1598A Marine Outside Type

EPJEX-3W-UNV

- Class 1, Div. 1: Groups C, D
- Outdoor Marine Type (saltwater)
- Paint Spray Booth Approved
- Tunable Driver for a Variable Lumen Output Range of 1,500lm to 11,000lm

EPJEXCOMBO-5W-UNV

- Class 1, Div. 1: Groups C, D
- Outdoor Marine Type (saltwater)
- Paint Spray Booth Approved
- Tunable Driver for a Variable Lumen Output Range of 1,500lm to 11,000lm

TRUEX LIGHTING

Offices in Tulsa, OK and Denver, CO

Remit All Payments To:
TRUEX, LLC
P.O. BOX 25277
Overland Park, KS 66225

Contact: info@truexlighting.com or 720-845-5754
